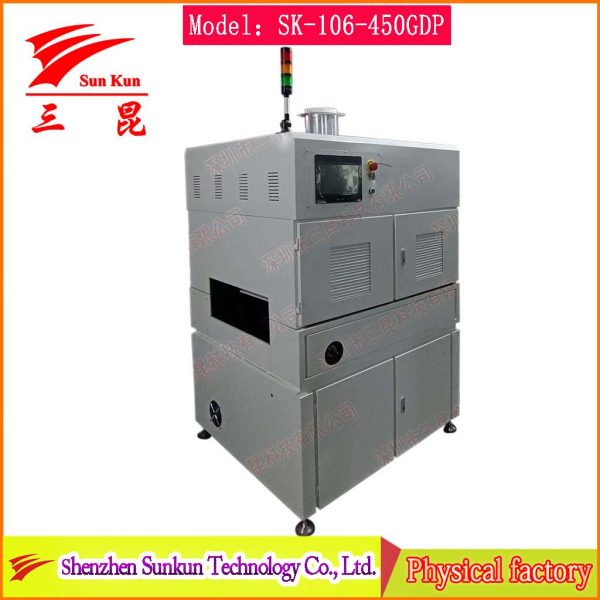

Application: The conformal coating UV curing machine (SK-106-450GDP) is suitable for single/double-sided circuit boards, electronic component plug-in lines and other scenarios. The color can be customized according to the customer’s color palette, taking into account both efficiency and flexibility.

Technical parameters

1. UV lamp power: 6 kW 1 piece (mercury lamp)

2. Product channel: light sensor switch installed at the outlet

3. Total length of UV lamp: 620mm, arc length: 500mm

4. Conveying material: chain 35B single-side extension pin 3mm

5. UV band main peak: 365nm

6. Conveying width: 50~450mm

7. Human-machine interface touch screen control

8. Conveying speed: 0.5~5m/min( 2 sections of independent conveying)

9. Strong and weak light intensity adjustment: 30~100% (intelligent electronic power supply)

10. Entrance height: 120mm above and below

11. Sheet metal light box installed with imported plug-in reflector

12. Power supply: 380VAC50HZ

13. UV lamp height electric adjustment

14. Install leakage switch (installed on the electrical bottom plate)

15. Use the upper exhaust system

16. Computer spraying: color (based on customer color plate)
