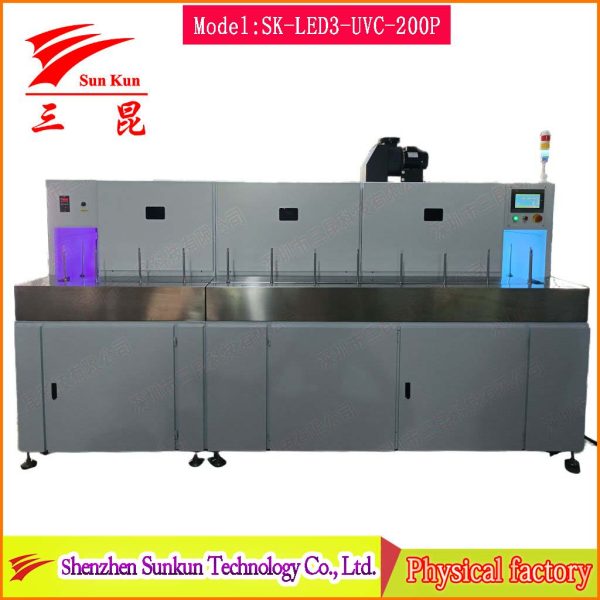

Excimer skin-feel paint UV curing machine (SK-LED3-UVC-200P)

Excimer skin-feel paint UV curing machine (SK-LED3-UVC-200P)

Excimer skin-feel paint UV curing machine (SK-LED3-UVC-200P)

The excimer skin-feel UV curing machine is specially designed for optimizing skin-feel paint products. It adopts the dual process of pre-curing and UV ultraviolet light to ensure efficient curing of the surface, giving it a delicate touch and gloss.

Consult product details(WeChat/WhatsApp/Tel): +86 13827486260

About Us Sunkun Company Strength!

  • Elite engineering team of more than 10 people
  • Quality assurance, no worries about delivery date
  • The physical factory covers an area of ​​3,000 square meters
Categories: , , Brand:

Application: Optimizing skin-feel paint products



Technical parameters

LED technical parameters:

1. LED light source: 3 groups (light beads imported from South Korea)

2. LED light irradiation surface size: side light 200mm, top light 330mm

3. UV band: 395nm

4. LED light group heat dissipation adopts water cooling system

5. The height, distance and angle of LED light group can be adjusted

UVC technical parameters:

1. UV lamp power: 320W*12 (mercury lamp)

2. UV lamp main wave peak: 185, 254nm

3. UV lamp length: 1550mm

4. The height, distance and angle of UV lamp group can be adjusted

5. Conveying direction: operating surface from left to right

Transmission technical parameters:?

1. Conveying material: ground rail chain

2. Rotating tooling: tooling rotates 360 degrees

3. Conveying speed: 0.5~3m/min

4. Inlet size: 400 * 250mm

5. Power supply: 220VAC 50HZ
