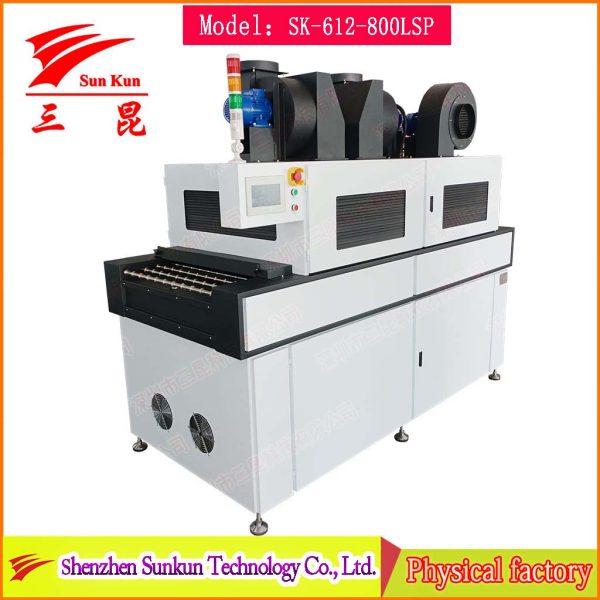

High-end halogen lamp PCB developer and curing machine (SK-612-800LSP)

High-end halogen lamp PCB developer and curing machine (SK-612-800LSP)

High-end halogen lamp PCB developer and curing machine (SK-612-800LSP)

High-end halogen lamp PCB developer and curing machine (SK-612-800LSP), the equipment integrates electronic power control and industrial-grade stability, suitable for high-precision electronic manufacturing field, taking into account efficiency and environmental protection characteristics.

Consult product details(WeChat/WhatsApp/Tel): +86 13827486260

About Us Sunkun Company Strength!

  • Elite engineering team of more than 10 people
  • Quality assurance, no worries about delivery date
  • The physical factory covers an area of ​​3,000 square meters
Categories: , Brand:

Application: PCB circuit board industry.



Technical parameters

1. Touch screen human-machine interface control

2. Strong and weak light intensity adjustment: 20%~100% (intelligent electronic power supply)

3. Sheet metal light box installed with imported insert reflector

4. Adopt the upper and lower exhaust systems

5. Conveying material: SUS 304 stainless steel roller

6. Conveying width: 800mm

7. Conveying speed: 0.5~6m/min

8. Inlet height: 30mm

9. Power supply: 380VAC 50Hz

10. Conveying direction: operating surface from left to right
