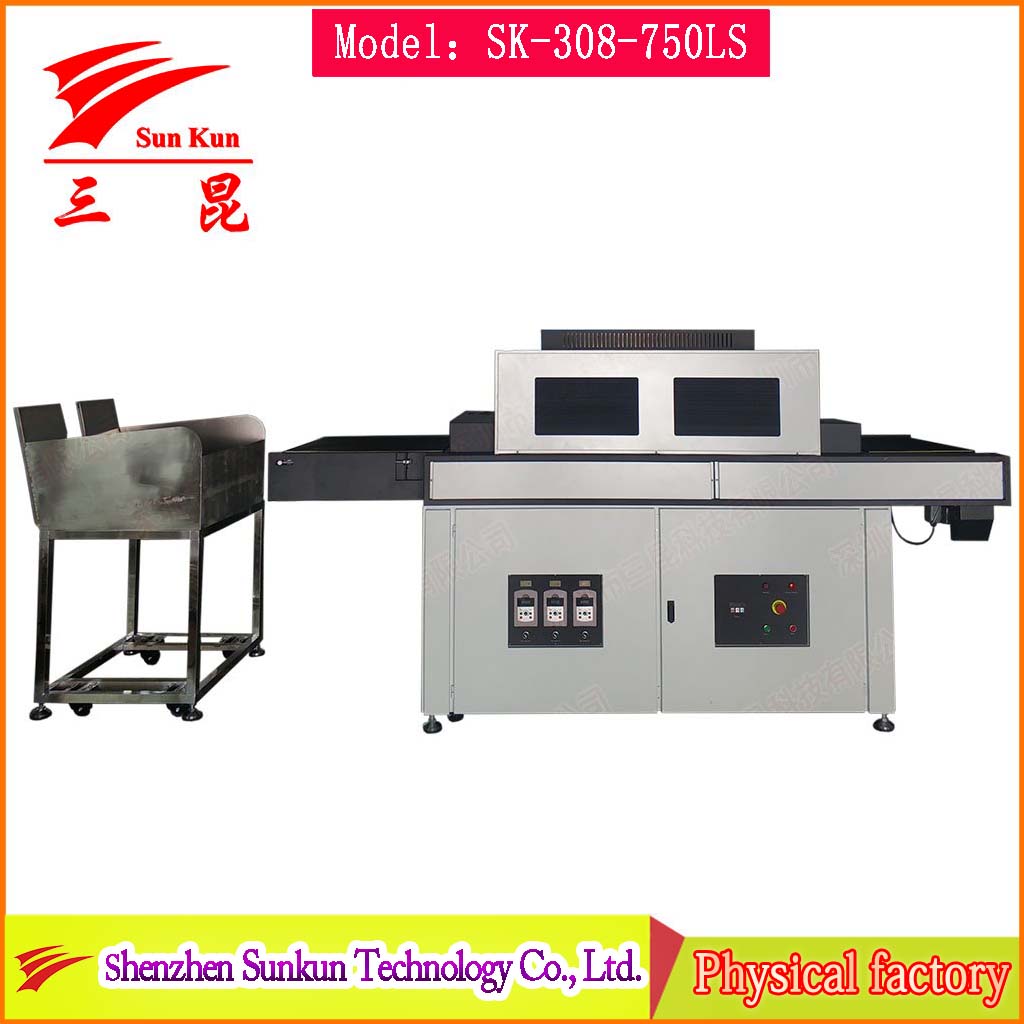

Ink printing high efficiency UV curing machine (SK-308-750LS)

Ink printing high efficiency UV curing machine (SK-308-750LS)

This UV curing machine adopts intelligent electronic power control technology, supports 20%-100% power adjustment, and is equipped with a dual main wavelength (365nm/385nm) high-power UV lamp group, which is suitable for the efficient curing needs of PET/PP and other materials. Equipped with a 750mm wide Teflon high-temperature resistant conveyor belt, the running speed can reach 95 meters/minute, and supports manual height adjustment to adapt to workpieces of different thicknesses. The equipment uses a 415V AC power supply, which has both industrial-grade stability and energy saving. It is widely used in ink printing, varnish coating, plastic screen printing and other fields to achieve precise curing and efficient production.

Consult product details(WeChat/WhatsApp/Tel): +86 13827486260

About Us Sunkun Company Strength!

  • Elite engineering team of more than 10 people
  • Quality assurance, no worries about delivery date
  • The physical factory covers an area of ​​3,000 square meters

Application: ink printing, varnish coating, plastic screen printing and other fields



Technical parameters

1. UV lamp specifications: 8.0 kW × 3 (halogen lamp)

2. UV lamp size: total length 850 mm, arc length 750 mm

3. UV main wavelength: 365 nm, 385 nm

4. UV intensity adjustment: 20% ~ 100% power (intelligent electronic power control)

5. Control method: through switch operation

6. UV lamp position adjustment: UV lamp height can be adjusted manually

7. Speed ​​range: 10 ~ 95 m / min

8. Conveyor belt width: 750 mm

9. Conveyor device material: Teflon (polytetrafluoroethylene)

10. Power requirements: 415 volts AC 50 Hz
