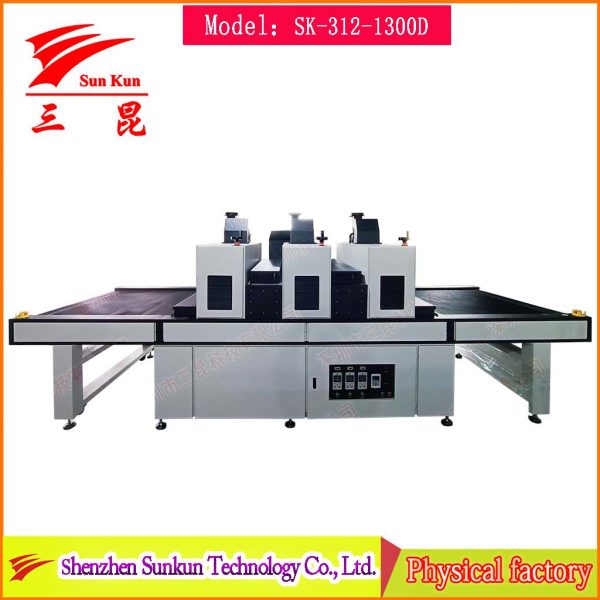

Application: Low temperature UV curing equipment (SK-312-1300D), suitable for screen printing, electronic component packaging, industrial coating and other fields.

Technical parameters

1. UV lamp power: 3 12kw (UV halogen lamp)

2. Total length of UV lamp: 1420mm, arc length: 1320mm

3. Main peak of UV band: 365nm, 385nm

4. Configuration of UV lamp accumulator

5. Conveying inverter: Taiwan Delta

6. Strong and weak light intensity adjustment: 20%~100% (stepless adjustment)

7. Sheet metal light box installed with imported insert reflector and optical filter lens

8. UV light box, high and low hand wheel lifting

9. Adoptthe  upper and lower exhaust system

10. Conveying material: Teflon mesh belt (guide strip)

11. Conveying width: 1300mm

12. Conveying speed: 2~12m/min

13. Entrance height: 50mm

14. Conveying direction: operating surface from left to right

15. Power supply: 380VAC 50Hz
