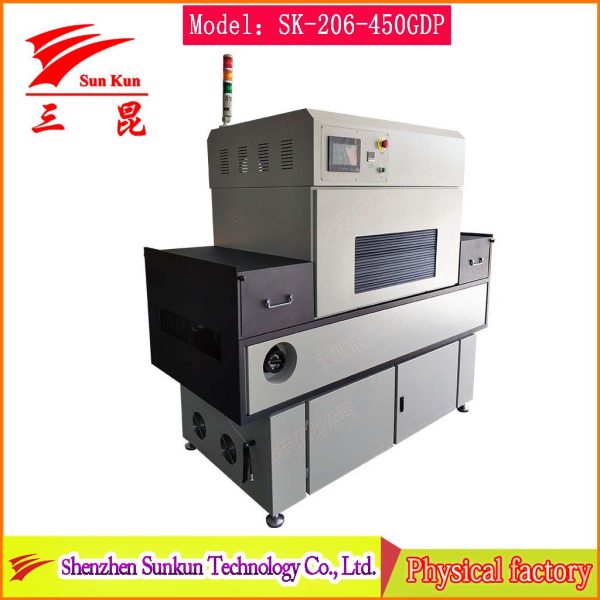

Application: PCB conformal coating, new energy battery glue, FPC dispensing and other precision curing scenarios

Technical parameters

1. UV lamp power: 6.0kw*2 (mercury lamp)

2. Total length of UV lamp: 620mm, arc length: 500mm

3. UV band main peak: 365nm

4. Human-machine interface touch screen control

5. Strong and weak light intensity adjustment: 75%, 100% (two-speed adjustment)

6. Sheet metal light box installed with imported insert reflector

7. UV lamp height electric adjustment

8. Adopt upper exhaust system

9. Product channel: light sensor installed at the entrance and exit Switch

10. Conveying material: stainless steel long pin chain (pin length: 10mm)

11. Conveying width: 50~450mm

12. Conveying speed: 0~5m/min (direct reading on touch screen)

13. Entrance height: upper space 200mm, lower space 100mm

14. Power supply: 380VAC50HZ

15. Install leakage switch (installed on the electrical bottom plate)

16. Computer spraying: color (Dongyasheng computer gray)
