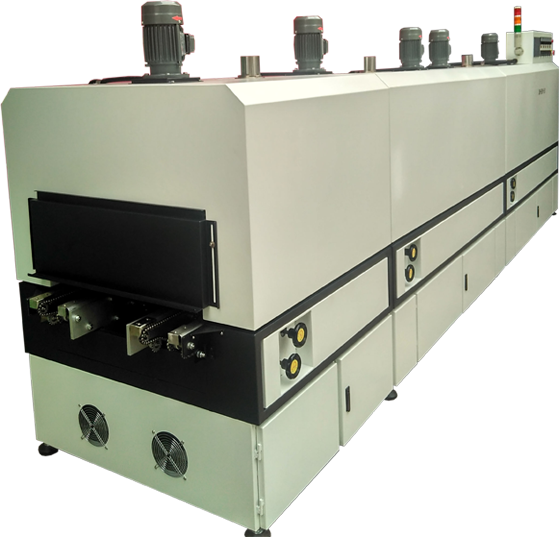

Main materials:
1. Stainless steel medium wave heating tube (power 2000W, 220VAC)
2. The heating tube is installed above the workpiece
3. Gear reduction motor and inverter speed control are used
4. Conveying material: carbon steel side guide wheel chain
5. Conveying width: 50~200mm adjustable (dual channel)
6. The upper box can be opened electrically for easy maintenance
7. The liner of the upper box is made of 1.0 (SUS304) stainless steel plate
8. The outer box is all made of 1.5 cold-rolled steel plate (computer spraying: computer white)

Main technical parameters:
1. Heating power: 24kw
2. Heating temperature: room temperature~180℃±5℃
3. Temperature zone: 4 sections
4. Conveying speed: 0~2m/min
5. Entrance height: 250mm
6. Stop heating and alarm when over-temperature
7. Power supply: 380VAC 50HZ
