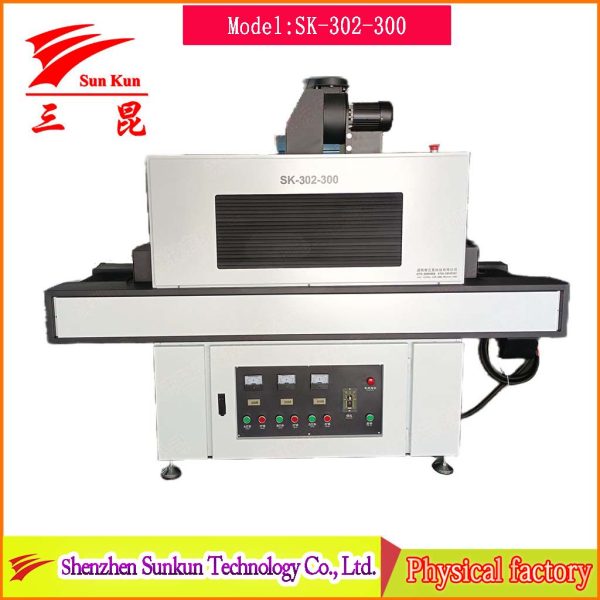

Tunnel type UV curing machine (SK-302-300)

Tunnel type UV curing machine (SK-302-300)

Tunnel type UV curing machine (SK-302-300)

This UV curing machine is equipped with 3 2.0kW high-power 365nm UV lamps, equipped with imported reflectors and filters to improve light efficiency, and the angle and height of the lamp body can be adjusted to suit multiple scenes. Teflon mesh belt (300mm wide) is resistant to high temperatures

Consult product details(WeChat/WhatsApp/Tel): +86 13827486260

About Us Sunkun Company Strength!

  • Elite engineering team of more than 10 people
  • Quality assurance, no worries about delivery date
  • The physical factory covers an area of ​​3,000 square meters
Categories: , , , , Brand:

Application: Multiple scenarios



Technical parameters

1. UV lamp power: 2.0kW*3 (UV mercury lamp)

2. Total length of UV lamp: 400mm, arc length: 300mm

3. UV band main peak: 365nm

4. UV lamp accumulator configuration

5. Sheet metal light box installed with imported reflector and optical filter

6. The angle and height of UV lamp can be adjusted

7. Upper exhaust system is adopted

8. Conveying material: Teflon mesh belt (guide strip)

9. Conveying width: 300mm

10. Conveying speed: 0~7m/min

11. Entrance height: 100mm

12. Power supply: 380VAC 50HZ
