1. UV lamp power: 3kw*2 (mercury lamp)
2. Total length of UV lamp: 620mm, arc length: 500mm
3. Main peak of UV band: 365nm
4. Configuration of UV lamp accumulator
5. Adjustment of strong and weak light intensity: 50%, 100%
6. Imported insert reflector installed on sheet metal light box
7. Manual and automatic shading of light box
8. Upper and lower exhaust system
9. Conveying material: Teflon mesh belt (guide strip)
10. Conveying width: 500mm
11. Conveying speed: 3~30m/min (forward and reverse)
12. Entrance height: 50mm
13. Power supply: 380VAC50HZ

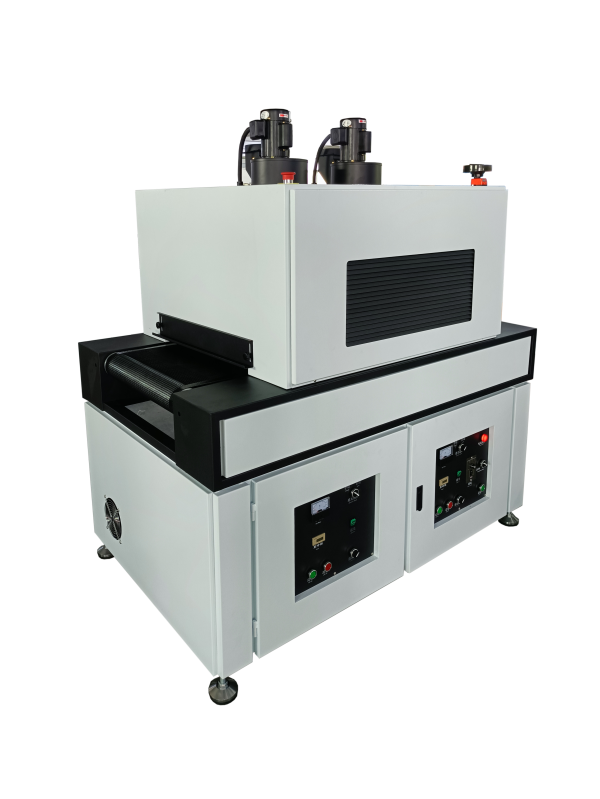

UV Curing Machine（SK-203-500KM）
UV Curing Machine（SK-203-500KM）
